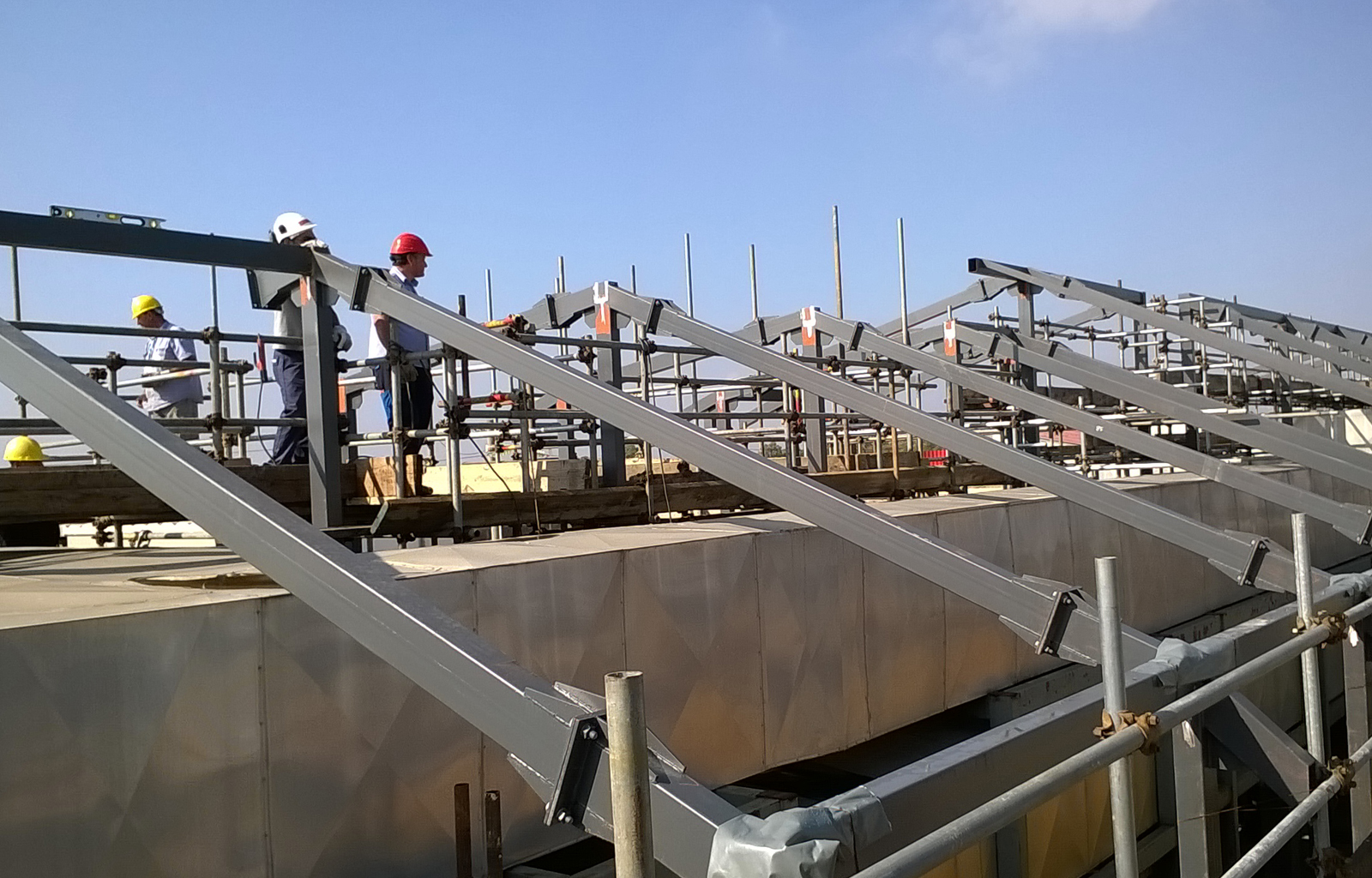

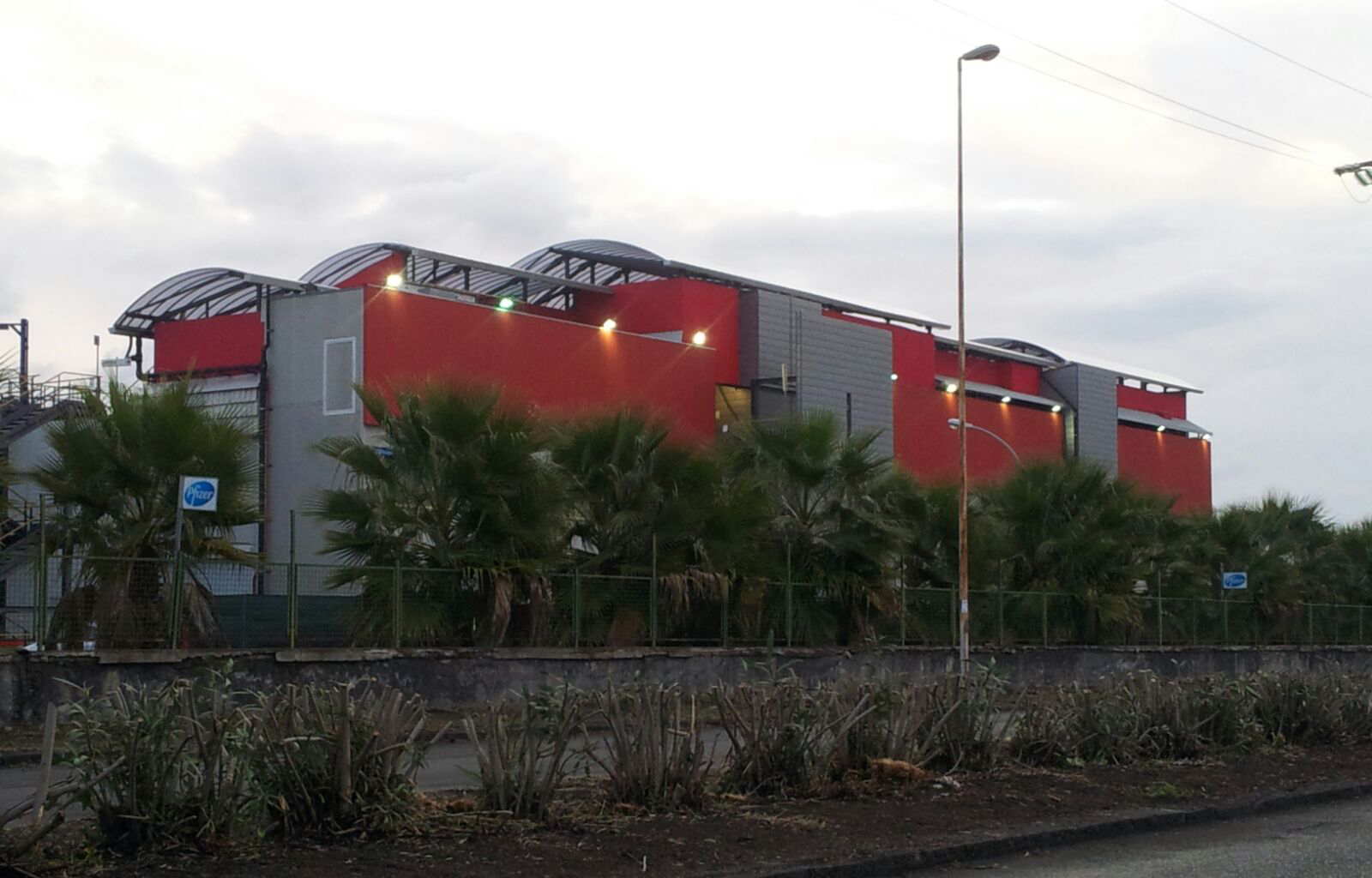

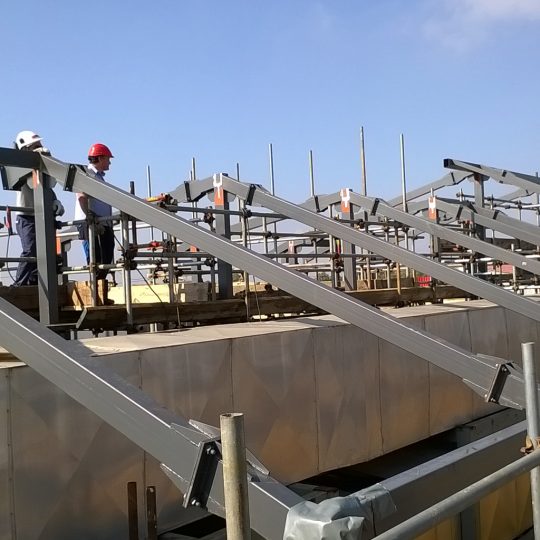

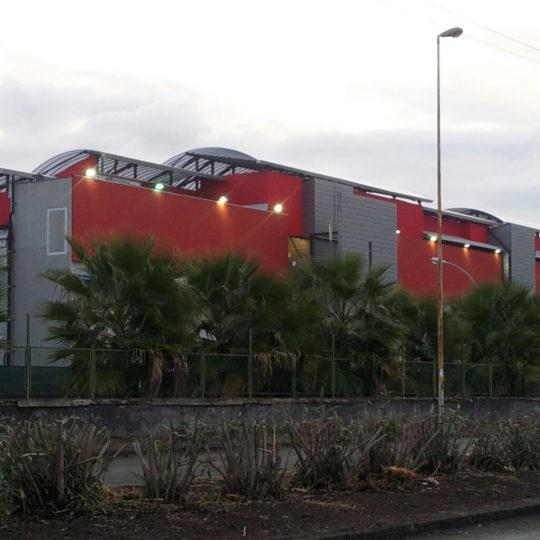

Construction of a series of canopies to protect the flat “terrace” roofs of some Pharmaceutical Buildings in the Pen Area, a protection from meteoric agents and in particular from rainwater in the PFIZER pharmaceutical plant in Catania.

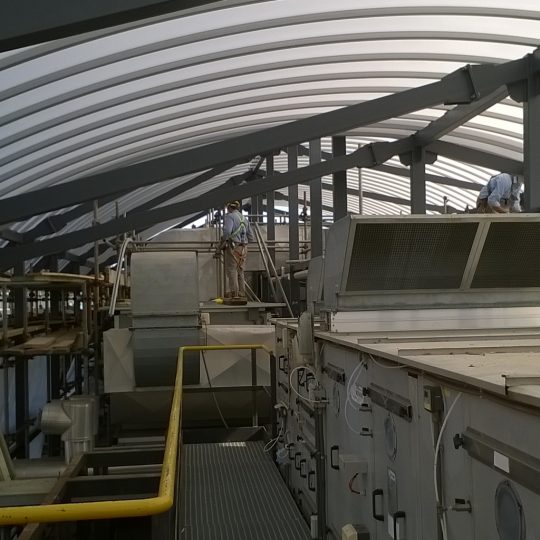

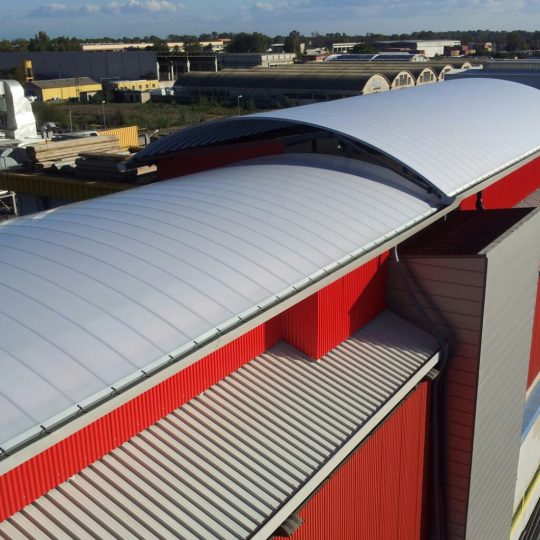

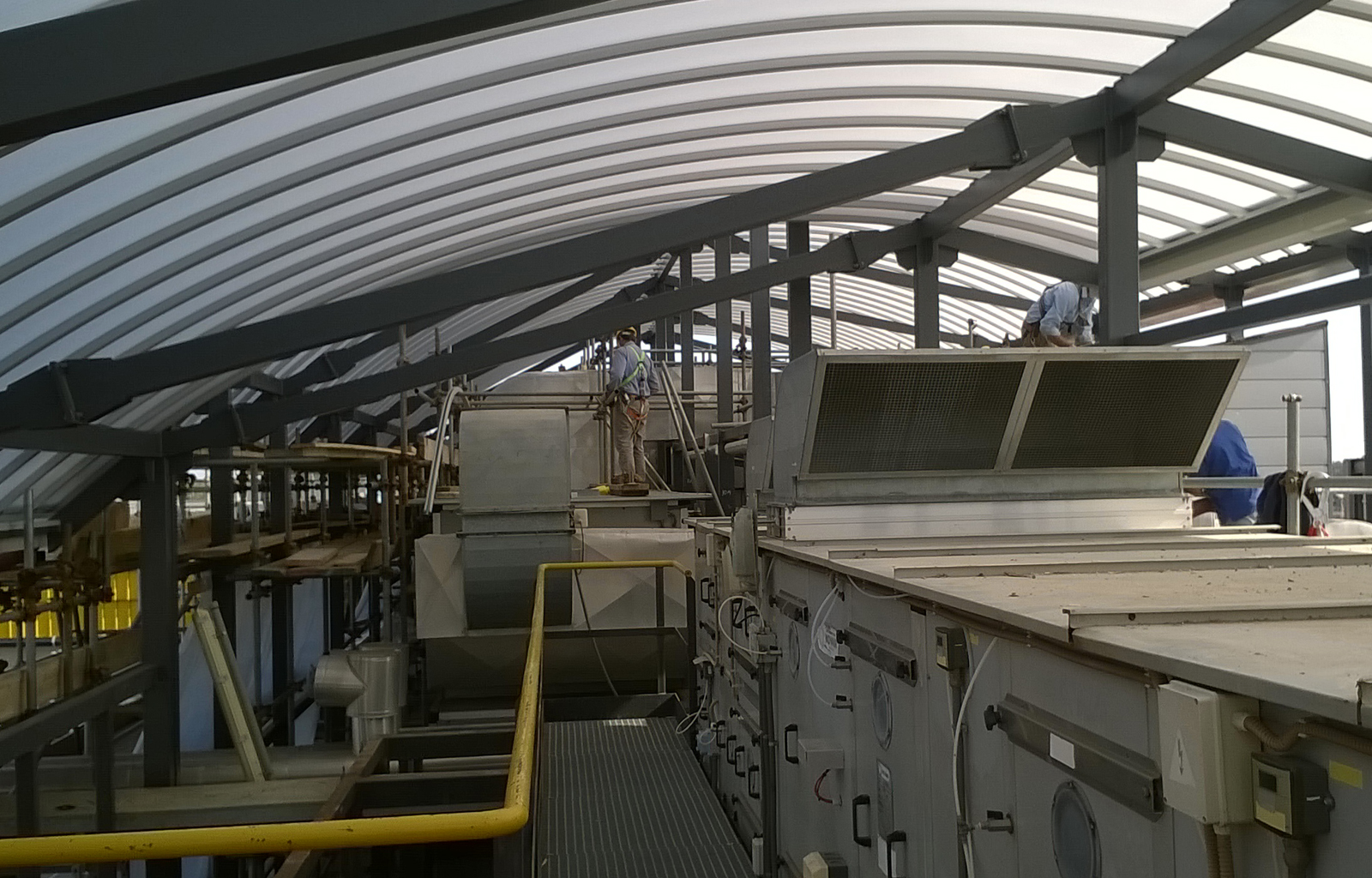

The new canopies, placed to protect against meteoric agents and in particular rainwater, with their arched shape, have the task of collecting rainwater and conveying it to the side eaves for subsequent removal outside the intervention surface. To complete the protection, in addition to the vertical panels, two small inclined rectilinear canopies were also built.

Some details about the works:
• covered area 900 square meters
• metal structure mounted 24,000 kg
• vertical panels installed 300 square meters
• painting performed 700 square meters
• pre-painted sheet metal gutters installed 180 ml
• pre-painted sheet metal flashings installed 170 ml
